Revolution Series Accessories

Some of our customers have product ranges that include components with challenging shapes and awkward sizes. These situations can benefit from additional equipment to make the manufacturing processes more efficient.

Our experience with over 80 global manufacturing sites has enabled us to build a range of accessories that meet these needs.

As we get to know your business and the types of products you wish to produce, we can suggest options that have worked well in similar circumstances. We only recommend options that will have a direct and positive impact on your manufacturing environment.

Vector Contour Projection

An optional projection system is now available, which can also be retrofitted to existing machines. It uses a media projector to beam the panel shape onto the machine work surface. A simple projection file is transferred to the dedicated projection PC and can be called up by keypad or barcode. This facilitates positioning of the vacuum pods prior to placing the panel on the surface, and significantly enhances productivity, especially with small batch sizes.

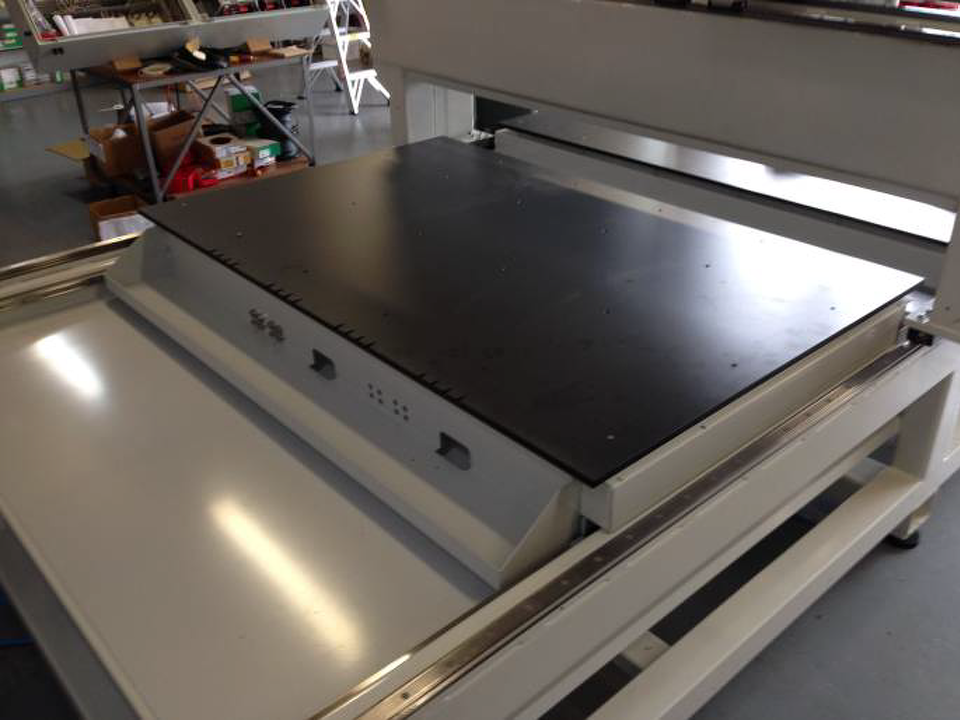

Shuttle Table

Available only for the Vector Revolution 180

A pneumatically operated split table for the left end of the machine which facilitates easy and safe loading of the left end when the machine is operating in pendulum. This shuttle table is compatible with our projection system.

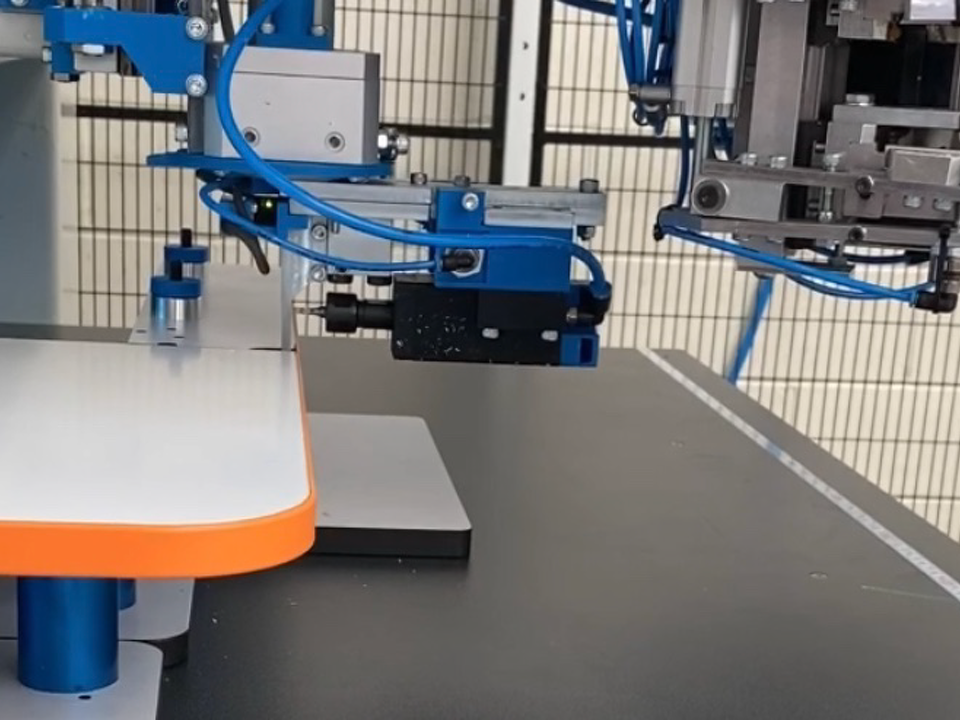

Head Mounted End-Trim (HMET)

The head mounted end-trim system uses a precision laser sensor to detect the leading and trailing edges of square-cornered panels. On completion of the banding process, the HMET unit is automatically positioned to trim the panel ends flush. As HMET is driven by a rotary servo, angled trimming is supported.
